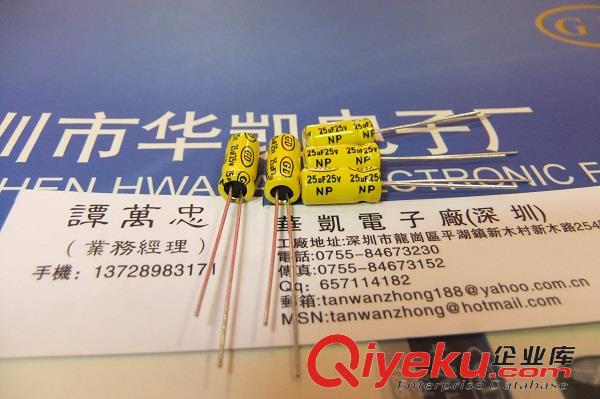

NPHseries Non-Polarized+105℃ wide temperature range standard無極性+105℃寬溫度品
1.適用于極性反轉回路，例如：信號交連或HI-FI高級音響設備如喇叭等。
NP series capacitors are suitable for crossover network for HI-FI equipment’s and speakers, etc.
2.具容量誤差小，頻率響應高之特質。
Have excellent frequency characteristic and small deviation of Capacitance.
Specifications
|
No. |
Item |
Performance |
|||||||||||||||||||||||||||
|
1 |
使用溫度范圍 Operating Temperature Range |
-40℃ to +105℃ |
|||||||||||||||||||||||||||
|
2 |
定格電壓范圍 Rated Working Voltage Range |
6.3-100V.DC |
|||||||||||||||||||||||||||
|
3 |
靜電容量范圍 Capacitance Tolerance |
0.1－2200μF |
|||||||||||||||||||||||||||
|
4 |
靜電容量容許差 Capacitance Tolerance |
±20% (at+25℃,120Hz) |
|||||||||||||||||||||||||||
|
5 |
泄漏電流 Leakage Current |
I≤0.03CV or 3（μA）after five minutes |
|||||||||||||||||||||||||||
|
6 |
損失角 Dissipation Factor(tanδ)（120Hz\＋25℃） |
|
|||||||||||||||||||||||||||
|
7 |
溫度特性（at 120 Hz） Characteristics at low temperature（stability at 120Hz） |
|
|||||||||||||||||||||||||||
|
8 |
高溫負荷特性 High Temperature Loading |
After2000 hrs. application of DC rated working voltage at +105℃. The capacitor shall meet the following limits: Post test requirements at + 25℃
|
|||||||||||||||||||||||||||
|
9 |
高溫?zé)o負荷特性 Shelf Life |
After storage for 1000hrs. at+105℃with no voltage applied. Post test requirements at+25℃ Same limits for high temperature lading. |
